Positioning Accuracy (mm):0.01 mm Working Table Size(mm):500*400 Travel (Y Axis)(mm):400 mm Spindle Motor Power(kW):6KW Dimension(L*W*H):1600*1500*2100 Weight (KG):1500 Type:CNC Engraving Machine Range of Spindle Speed(r.p.m):1000 - 36000 rpm No. of Spindles:Single Travel (X Axis)(mm):500 mm Repeatability (X/Y/Z) (mm):0.01 mm Voltage:380V/220V Key Selling Points:Multifunctional Function:Milling Engraving
We are HCIC, a powerful supplier of automotive testing equipment and automation equipment in China. We have been established for nearly 30 years, during which we have independently developed and improved a total of 10,000 sets of various types of equipment. We have 8 factories and 2 R&D bases in China, with more than 700 employees.
1.The casting structure is stable, reasonable and beautiful. The cast iron of our company is cast with HD250 grade, which has time aging and annealing aging to ensure that the cast iron body is stable and not deformed and durable.
2.The main parts of the fuselage are the first and second configuration parts imported from the same industry: for example: the guide rails are precision grade guide rails from Taiwan Shangyin or Yintai or ABBA; the screw rods are Japan's NSK, THK or German Rexroth (Rexroth); the system adopts Taiwan's new generation bus absolute value control system and integrated drive; the servo motor adopts the high inertia of Japan's Panasonic servo motor; the wire adopts Japanese wire and custom wire.
All parameters can be customized
Parameters of the sample
| No. | Item | Specifications |
|---|---|---|
| A Technical parameters of machine tool: | ||
| 1 | The machine body and all parts are made of nano castings | |
| 2 | Table size | 500×400mm |
| 3 | T-groove (width x quantity x spacing) | 10×5×78mm |
| 4 | The largest load | 200KG |
| 5 | Maximum feed height | 280mm |
| 6 | Distance from spindle face to work | 100-280mm |
| 7 | Triaxial travel X/Y/Z | 450/400/170mm |
| 8 | The spindle diameter | Ø100mm |
| 9 | Spindle speed | 36000RPM |
| 10 | Spindle motor power | 6KW |
| 11 | Spindle tool library capacity | 8 |
| 12 | Tool change time | 5S |
| 13 | The spindle taper | ISO25 |
| 14 | Knife library classes | Servo disc rotation |
| 15 | Fast moving rate X/Y/Z | 12/12/12m/Min |
| 16 | Processing speed | 6－12m/Min |
| 17 | Positioning accuracy | ±0.006/300mm |
| 18 | Repetitive positioning accuracy | ±0.006/300mm |
| 19 | Machined surface accuracy | ≤Ra1.6 |
| 20 | The machining accuracy | ±0.01mm |
| 21 | Optional four-axis five-axis | Yes |
| 22 | Angle of rotation of axis A | ±105 degrees |
| 23 | Fifth axis C axis rotation Angle | 360 degrees |
| 24 | Five-axis linkage mode | 5 axis with the move |
| 25 | Working voltage | 380V/50HZ±10% or 220V/60HZ |
| 26 | Machine size (l * W * H) | 1450×1600×2100mm |
| 27 | The body weight | 1500KG |
| B Machine tool configuration details brand parameters: | ||
| 1 | The system configuration | Taiwan SYNTEC 6GA/Ncstudio280/LNC |
| 2 | The spindle | 6KW high-precision, high-speed, high-quiet oil-cooled spindle |
| 3 | Ball screw | Japan NSK, Germany RexRoth) 2005 |
| 4 | Linear guide | Taiwan HIWIN/ABBA high precision guide H25 |
| 5 | Servo unit | Panasonic Servo motor 750W/Ncstudio |
| 6 | Wire rod bearing | Taiwan TPI precision grade bearing |
| 7 | Switching power supply | Taiwan Ming weft |
| 8 | Electric switch | China chint |
| 9 | converter | * Square converter |

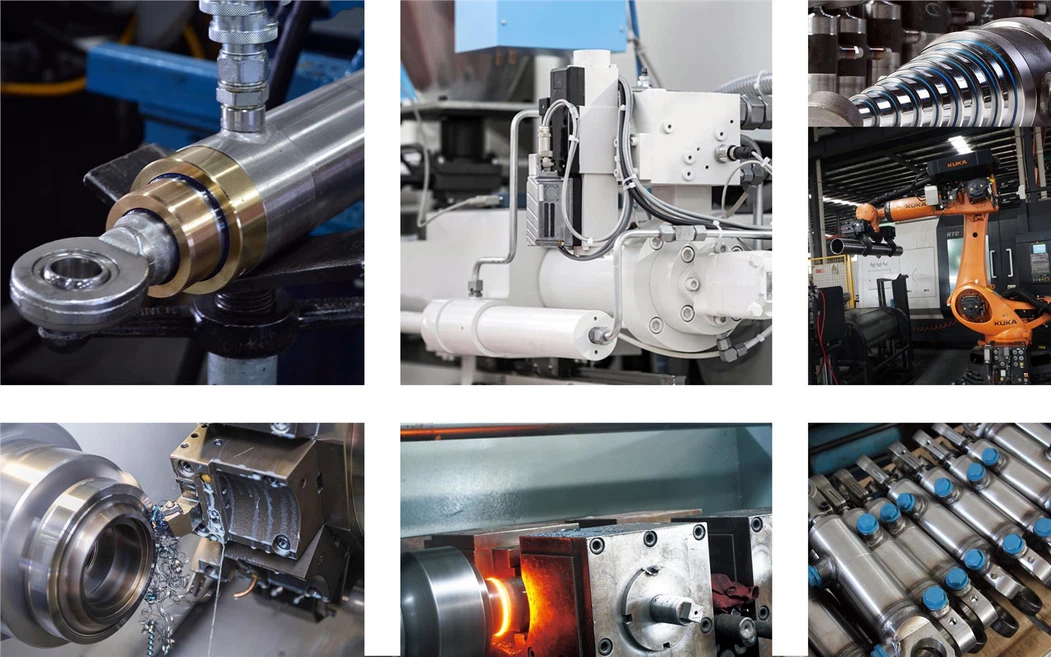

Features of customized hydraulic cylinder designed by the factory:
High-altitude operation machinery sends operators to the designated position in the air through the lifting platform for construction. Due to the high operation height, it has high requirements for safety, reliability, comfort and maneuverability. The cylinder product has realized modularization, serialization and lightweight.
1. The application of standardized design, welding and anti-loosening patented technology makes the product more reliable;
2. Lightweight design minimizes the weight and makes the equipment safer and more efficient;
3. Simple design, convenient disassembly and maintenance;

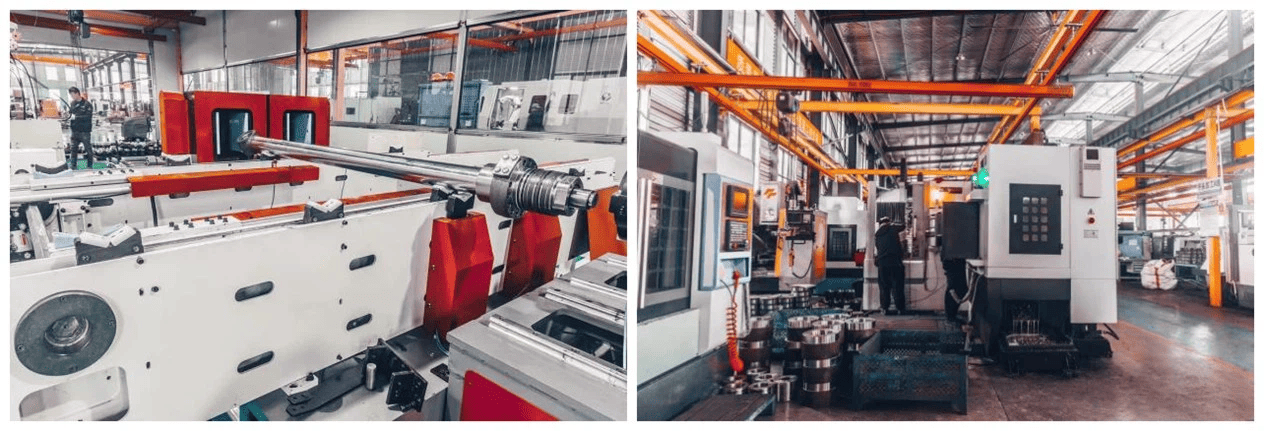

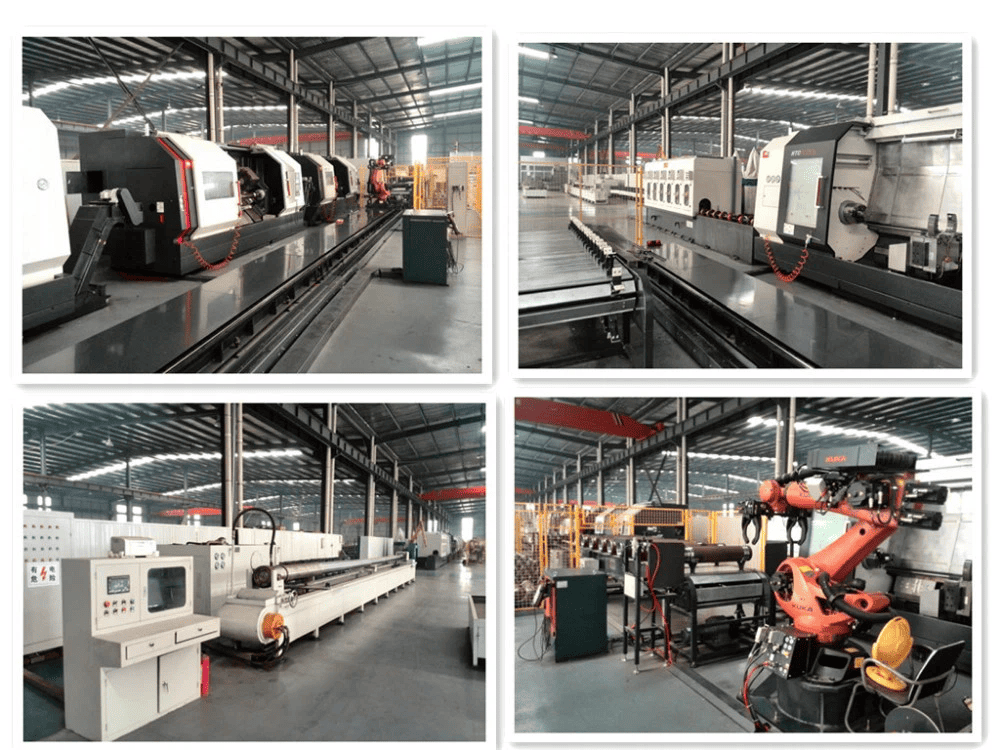

The company has international advanced equipment such as processing centers, full digital hydraulic testing systems, CNC machine tools, and automatic welding machines. The annual output of various types of hydraulic cylinders and power units can reach more than 30,000 units. Each of our products will undergo the strictest performance testing before leaving the factory to ensure its safety. Our products are widely used in various forklift accessories, construction machinery, metallurgical machinery, sanitation equipment and various automation equipment.
We adhere to the business philosophy of "quality first, service first" and provide customers with high -quality products. The company has been trusted and supported by many customers with its competitive price advantages and high -quality services over the years. Looking forward to serving you!
HCIC has taken the lead in passing ISO9001, CE and other international quality system certification in the same industry, and has been awarded the honorary titles of "Star Enterprise of Scientific and Technological Innovation" and "Forerunner of Foreign Trade" for many times.
"Huachen" has always adhered to the working philosophy of "striving for success with quality and returning customers with service", the development goal of "based on China and going to the world", and the service spirit of "honesty first, being a man first". We will continue to serve you with better industry technology, product quality and better service system, and work with you to share success.
Trust us! Once cooperative, long-term friend.
1.How will you guarantee the quality?
We will test and send testing video to buyer confirm before shipping.
2.When will you ship the order?
Once we get confirmation of payment,we will try our best to ship within 48 hours.
3.How can I track my order?
Once your order in shipped,we will e-mail you shipping details.
4.If I was not satisfied with the products,can i return goods?
Yes,we offer exchange and repair service in the warranty time.
5.How do you make our business long-term and good relationship?
a. We keep good quality and competitive price to ensure our customers benefit ;
b. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
