3-Stage Double Acting Telescopic Hydraulic Cylinder

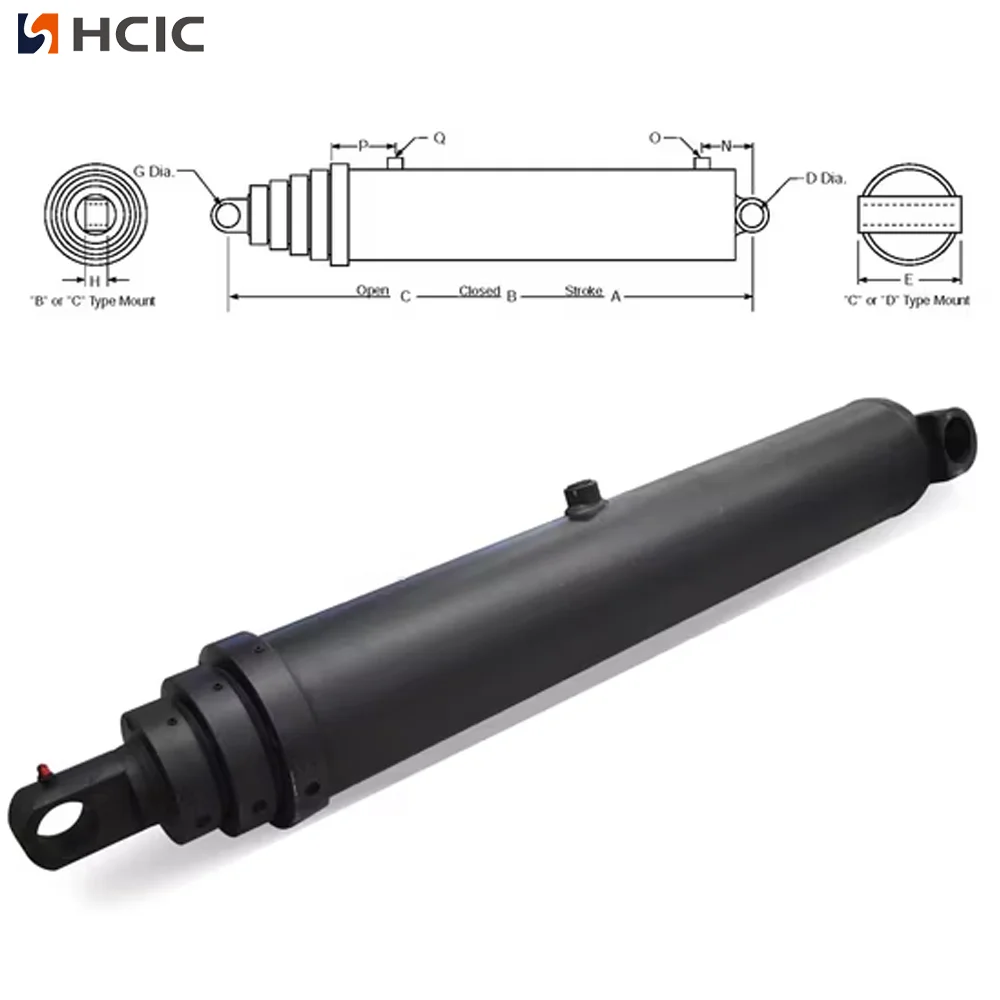

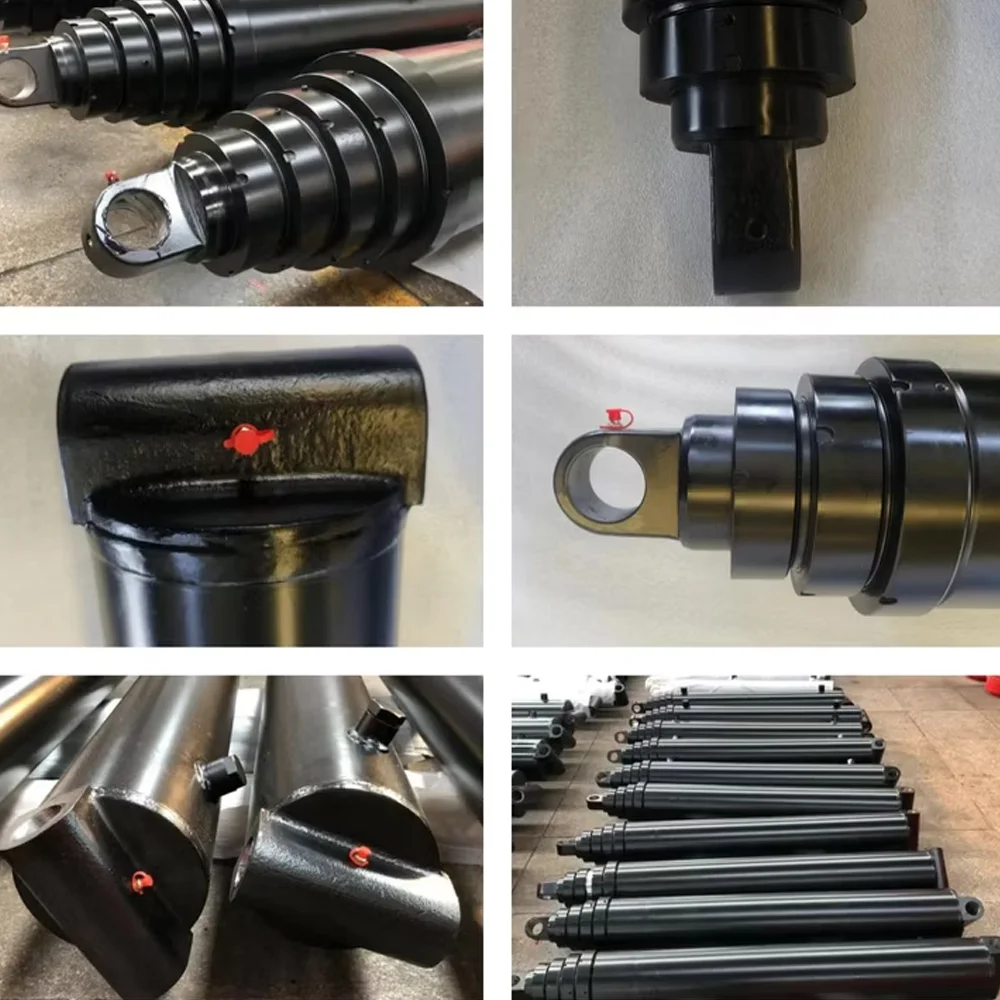

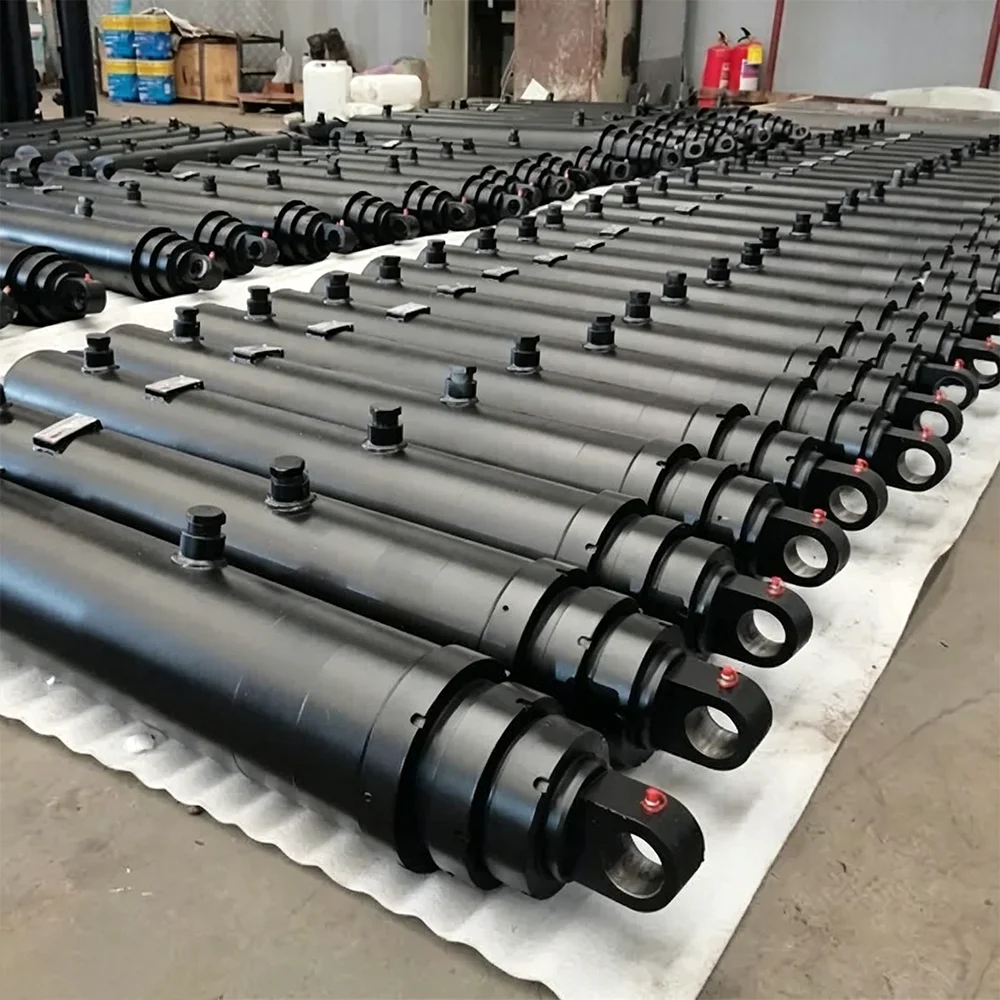

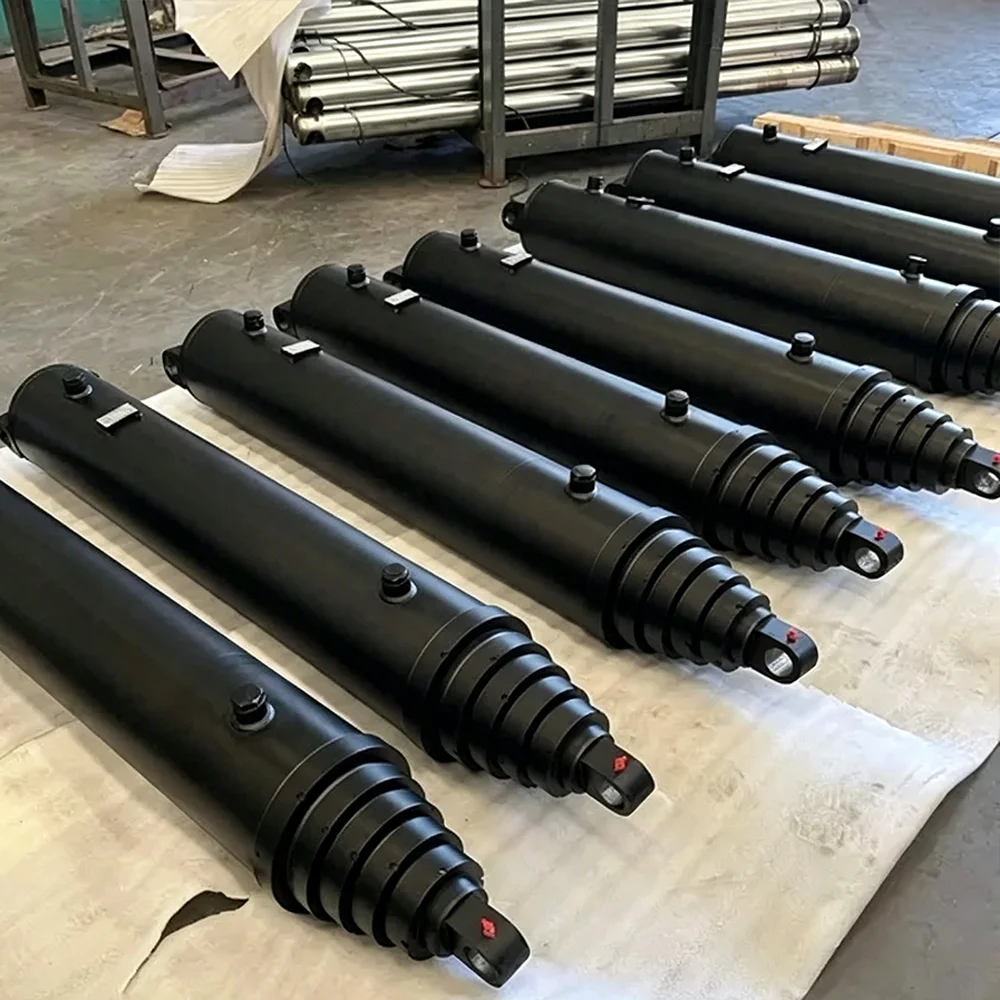

HCIC makes custom hydraulic cylinders for industrial equipment. The H-001-7041 three-stage double acting telescopic cylinder works well on 28YD front loaders, horizontal ejector trailers and waste compactors. Powered hydraulic retraction shortens working cycles for waste service fleets. Precisely honed inner walls and built-in relief ports shield internal seals, keeping the cylinder run stably during long hours of frequent operation.

I. The Retraction Bottleneck: Why Force-Retraction is the Standard

In the 28YD Front Loader sector, waiting for a massive multi-stage ram to crawl back using only the weight of the debris is a waste of fuel and profit. This is where the 3-stage double-acting telescopic hydraulic cylinder wins. It is a 3-stage powerhouse engineered for active, pressurized retraction. By integrating a dedicated rod-side return chamber, we allow the operator to snap the ejector plate back into position instantly, cutting the cycle time and getting the truck back on the route while competitors are still waiting for their single-acting rams to seat.

II. Technical Specifications

III. Field-Hardened Engineering: Core Features

• Active Power-Down Control: The 3-stage double acting telescopic hydraulic cylinder doesn't rely on the "spongy" retraction of gravity-fed units. The double-acting design provides full hydraulic control in both directions, which is essential for horizontal ejectors where gravity can't help.

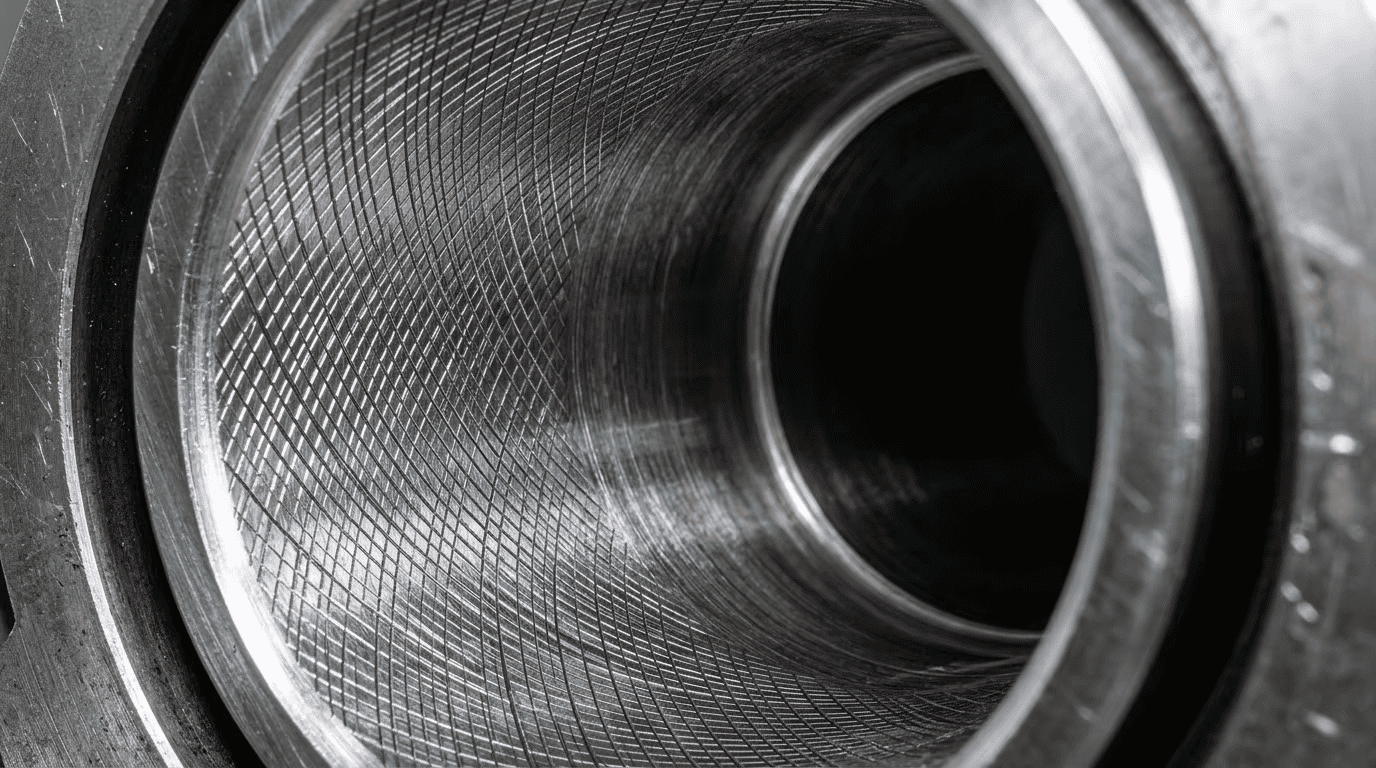

• Precision-Honed Sleeves: Every stage of this 3-stage double acting telescopic hydraulic cylinder undergoes a dual-pass vertical hone. We hold the finish to Ra 0.2μm. This specific cross-hatch pattern traps a microscopic oil film, preventing the "seal nibbling" that kills generic multi-stage units in high-acid waste environments.
• Integrated Relief Ports: We’ve engineered the porting at the rod end to handle rapid fluid displacement without cavitation. This protects the internal seals from the vacuum-spikes that often occur during high-speed retraction cycles.

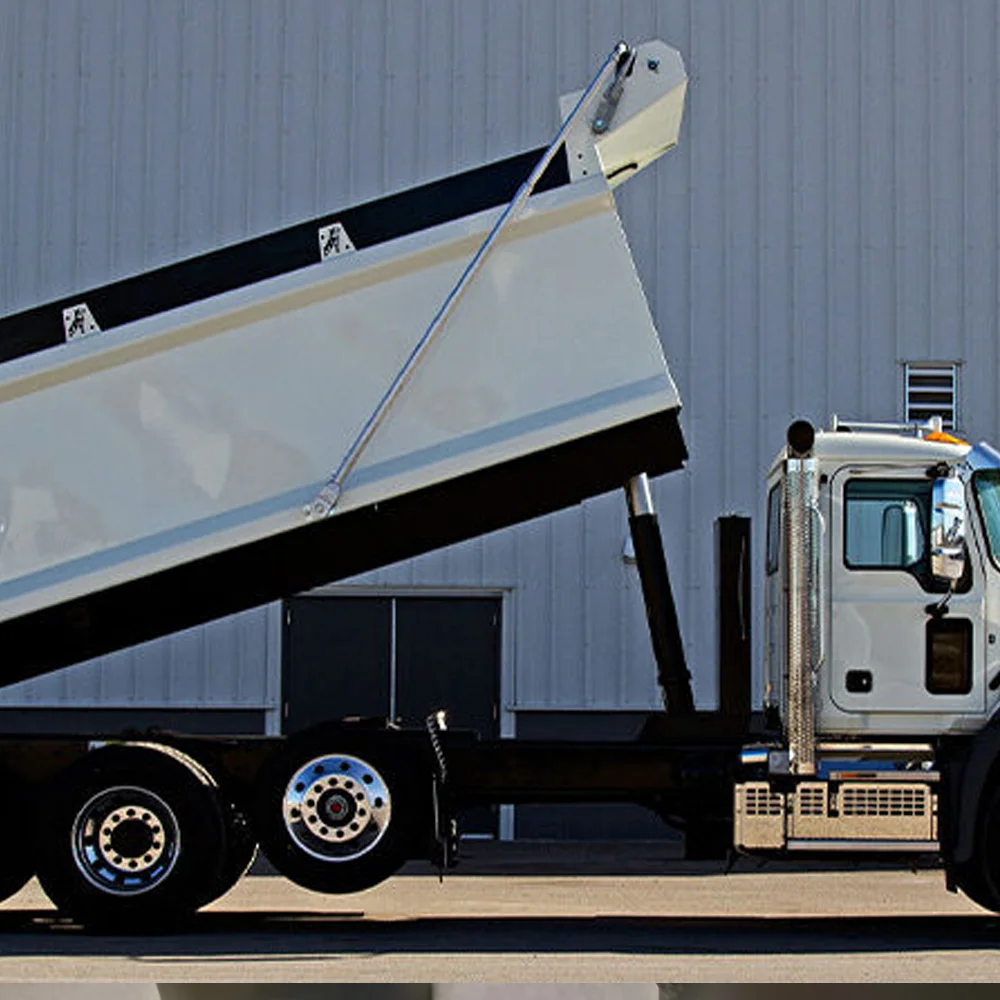

IV. Application Scenarios: Beyond the Dump Truck

The 3-stage double acting telescopic hydraulic cylinder is the primary choice for:

• 28YD Front Loader Garbage Packers: Driving the horizontal ejector plate for high-density compaction.
• Horizontal Ejector Trailers: Used in waste haulage and agricultural transport where overhead clearance is too low for tipping.
• Stationary Recycling Compactors: Providing reliable, high-cycle force for 24/7 industrial waste processing.

V. H-001-7041 Technical FAQ

• (1). Q: Can the H-001-7041 replace a single-acting ram on my current 28YD fleet?

       A: Yes, but you must ensure your control valve is a 4-way, 3-position type and that you have a return line installed. The H-001-7041 Telescopic Cylinder requires pressurized oil to retract efficiently.

• (2). Q: What happens if the ejector plate hits a mechanical jam?

       A: This model is designed to operate within 16-25 MPa. If a jam occurs, the system pressure spikes. Our internal seal geometry is built to withstand these momentary surges, but we recommend an external relief valve set at 28 MPa to protect the cylinder barrel from distortion.

• (3). Q: How do I identify a genuine HCIC H-001-7041?

       A: Every authentic unit has a permanent serial number and QR code etched near the base port. Scan it to access the digital pressure-test log and the original material test report (MTR).

VI. Conclusion: Reliability is a Metric

Buying a large-bore ram based on a low-resolution photo is a gamble. HCIC provides the documented metallurgical proof and real-world data for every H-001-7041 Telescopic Cylinder we ship. We aren't just selling iron; we’re providing the engineered uptime your fleet needs to stay profitable. Ready for a detailed CAD submittal or a bulk OEM quote? Reach out to our engineering lead today.
