​FC Series Front Mount Multi-Stage Cylinder

I. Product Overview

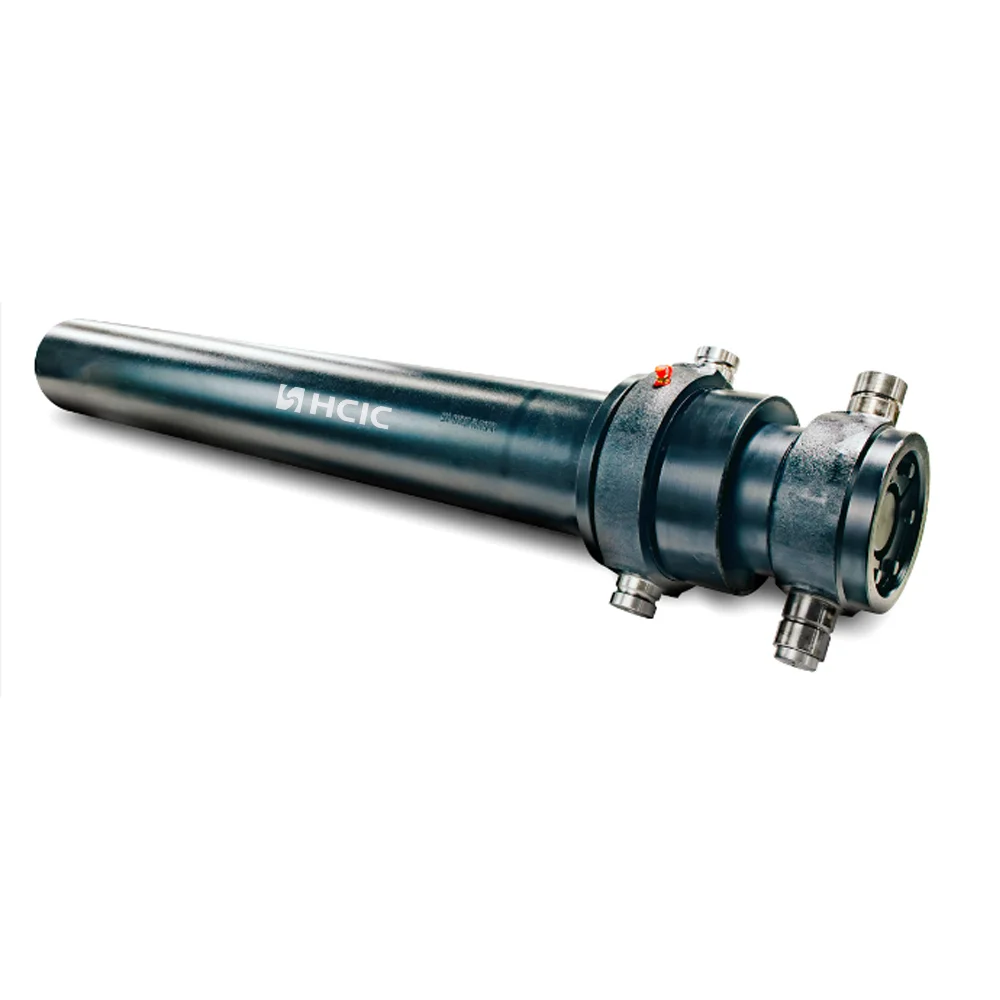

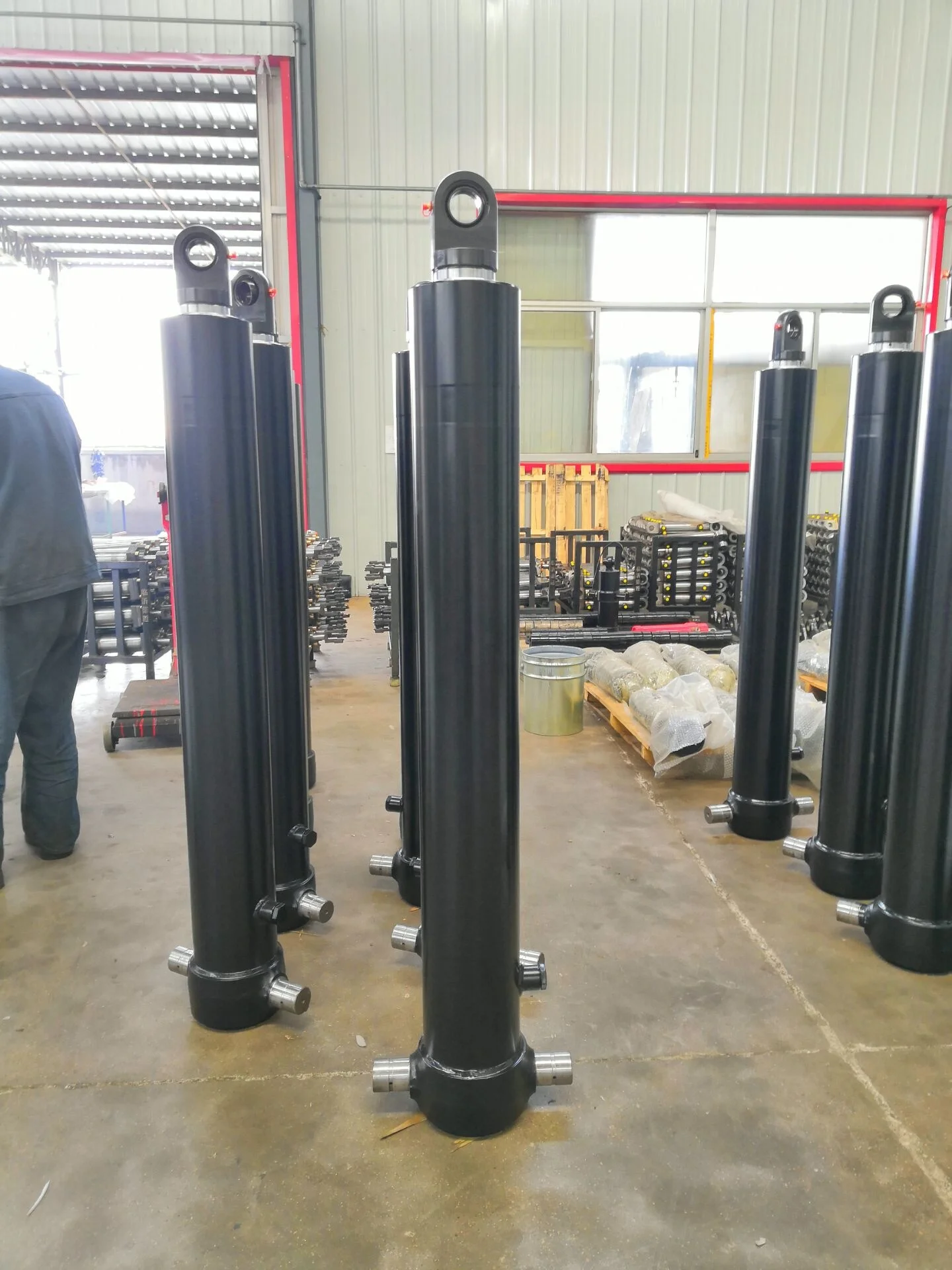

The FC series front mount multi-stage cylinder is a workhorse hydraulic part built for heavy loads and long strokes, where space is tight. It uses a single-acting telescopic design to pack big stroke into a small footprint. You’ll find it on dump trucks, construction gear, sanitation trucks, and mining equipment, built to run steady and last.

1.1 Core Technical Parameters

1.1.1 Basic Specifications

• Stages: 3–5 as standard, can go up to 6 if needed
• Rated working pressure: 16–25 MPa
• Test pressure: 37.5 MPa
• Max stroke: 3205–9530 mm
• Outer diameter: 91–214 mm
• Operating temperature: -30℃ to +80℃
• Operation mode: Single-acting, gravity retract
• Mounting style: Front mount

1.1.2 Typical Model Parameters

1.2 Key Product Features

1.2.1 Compact Build with Long Stroke

Thanks to the nested multi-stage design, retracted length is only 20%–40% of full stroke. It lets you get the long travel you need without taking up too much room—perfect for truck beds and telescopic booms.

1.2.2 Heavy-Duty, High-Strength Materials

We use high-grade alloy steel for the cylinder barrel and 42CrMo for the rod, with quenching and chrome plating. It easily handles 25 MPa working pressure, takes hard impacts, and won’t bend even under heavy loads.

1.2.3 Solid Sealing, No Leaks

We fit these cylinders with only top-tier seals. Even with constant heavy use and back-and-forth movement, it stays sealed up tight, no messy leaks, less downtime.

1.2.4 Machined for Smooth Operation

Every part is CNC machined to tight specs. Guide rings between stages cut down on friction, so it slides in and out smoothly, no jolts, no noise.

1.2.5 Front Mount, Strong and Simple

The front flange is welded straight to the cylinder, so it’s rigid and holds up well under load. Holes line up with standard equipment mounts, making installation and maintenance straightforward.

II. FAQ:

III. Where It Works

3.1 Dump & Tipper Trucks

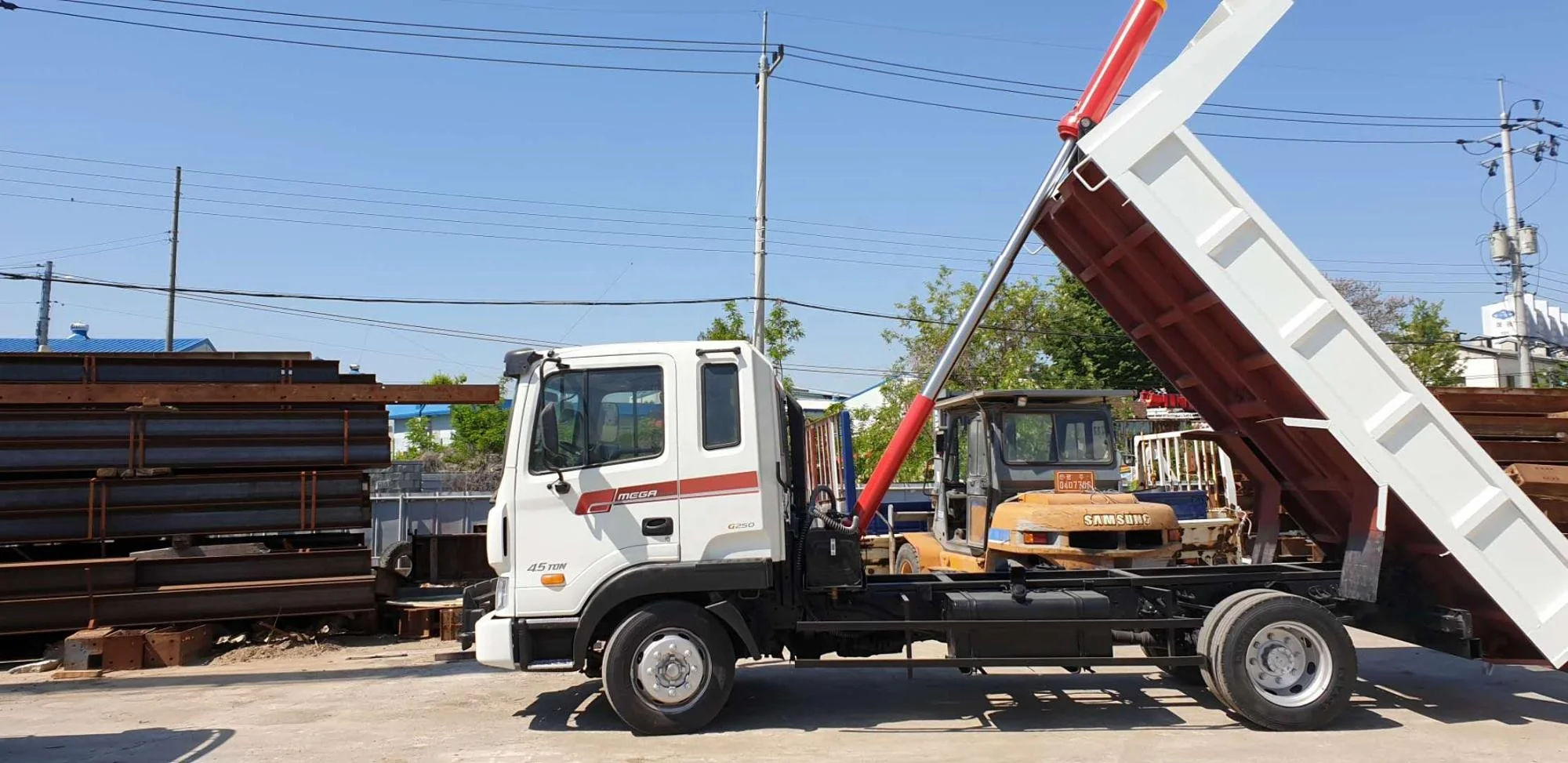

Ideal for 5–80 ton dump trucks and semi-trailers. It lifts steady, dumps clean, and holds up to the rough work of mines, construction sites, and hauling jobs.

3.2 Construction Machinery

You’ll see it on telescopic forklifts, aerial lifts, sanitation compactors, and mining gear. It powers boom lifts, bucket tilts, and trash compacting in tough, messy work sites.

3.3 Special Vehicles & Equipment

Also used on garbage trucks, wreckers, lifting platforms, and gate mechanisms. It solves the space and load problems you face in these jobs, keeping things running reliably.

IV. Benefits for You

4.1 Saves You Time & Money

Built to last, so you won’t be replacing it all the time. Simple design and good seals mean less maintenance. It responds fast, so your equipment works faster too.

4.2 Fits Most Jobs

We have standard models ready to go, but we can also tweak stroke, pressure, mounting, and load to fit your exact setup. It works in cold, hot, dusty, and wet conditions.

4.3 Safe & Dependable

Tough enough to handle overloads and side loads without failing. We back it with a full warranty and fast after-sales support, so you can run worry-free.

V. About HCIC

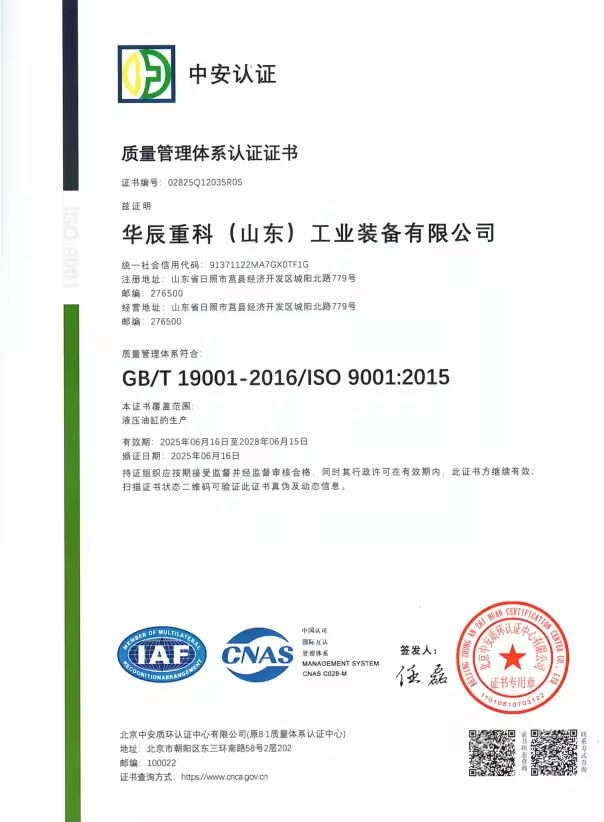

• We started HCIC back in 1998, and we’ve been building hydraulic cylinders for 28 years. We’ve got three factories, our own R&D team, and full CNC lines, plus ISO9001 certification.
• We make both standard and custom hydraulic cylinders. The FC series front mount multi-stage cylinder is our go-to for heavy-duty, long-stroke jobs.
• We build our products around what you actually need—stable, reliable, cost-effective hydraulic solutions for construction, special vehicles, and mining equipment worldwide.
